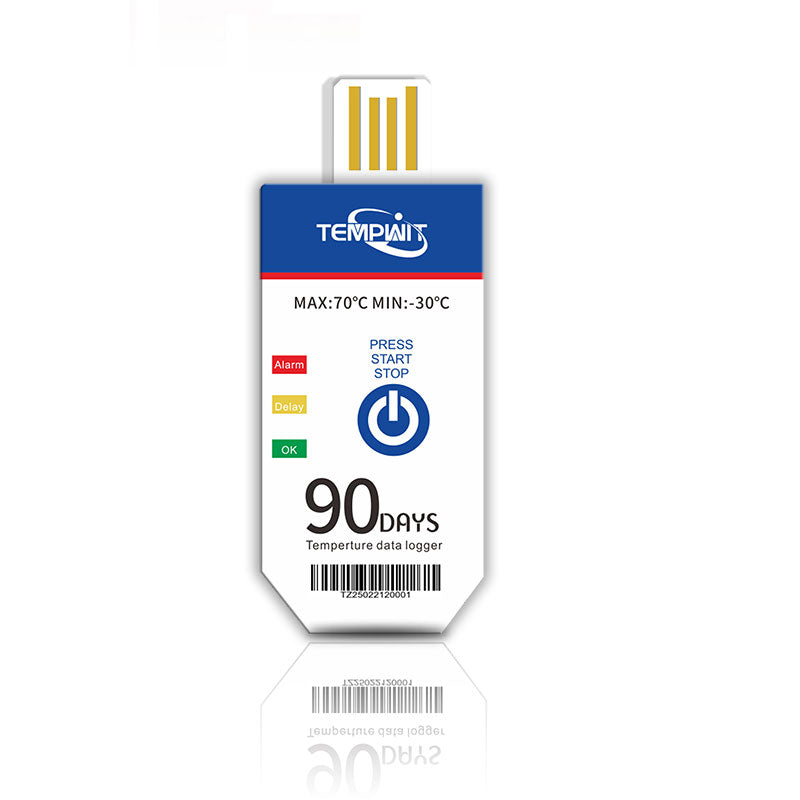

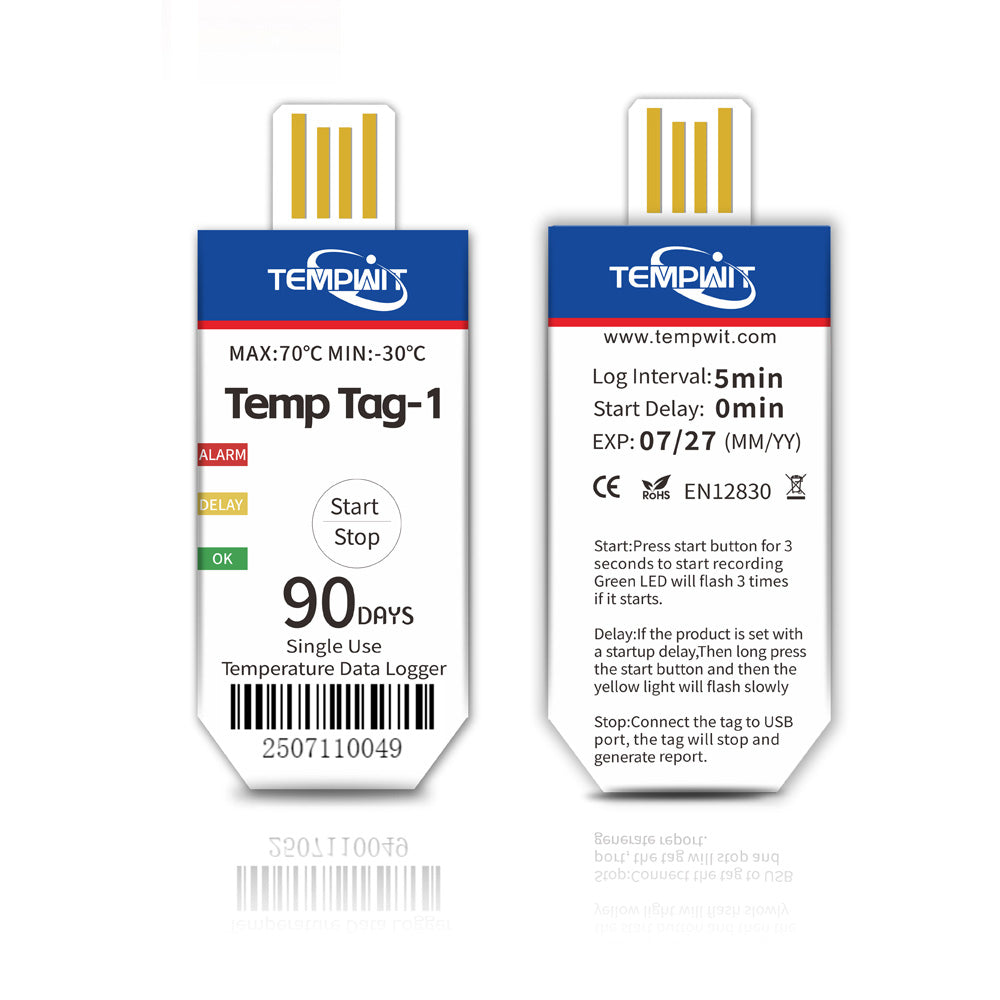

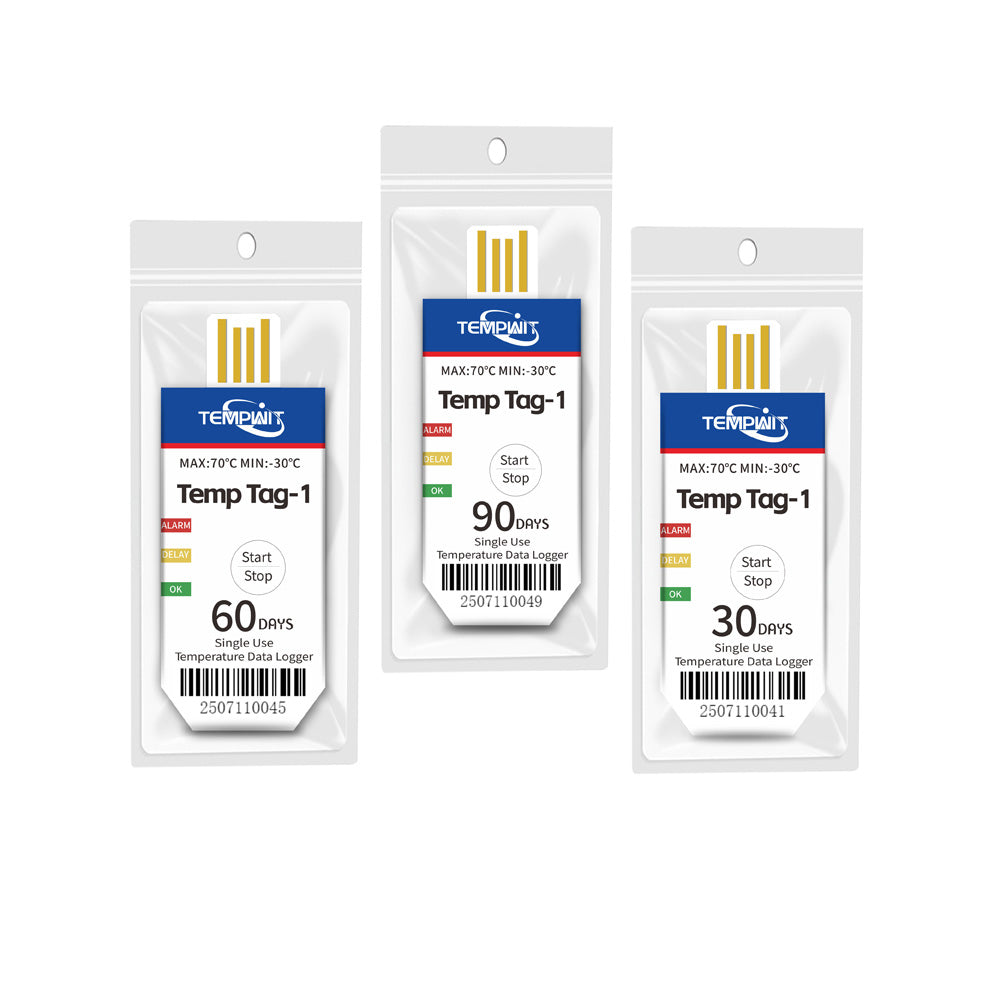

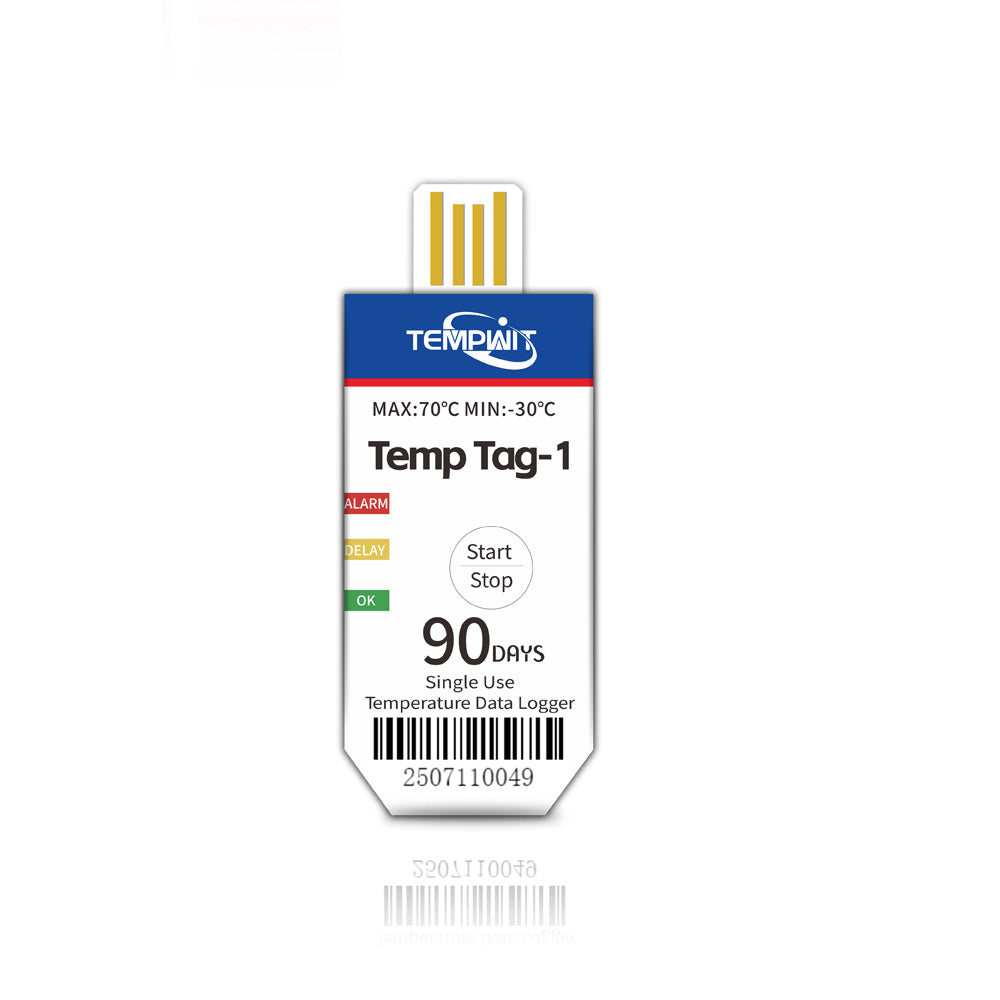

Temp Tag-1 Single Use Temperature Data Logger

Temp Tag-1 Single Use Temperature Data Logger

Description

As a cost-effective single use temperatrure data logger, uses food-grade composite bags, which are completely waterproof. After one-click activation, it can be placed in the target monitoring environment to monitor and record the temperature of fresh food, medicine and other products during storage and transportation.
It is widely used in all aspects of storage and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, laboratories, etc.

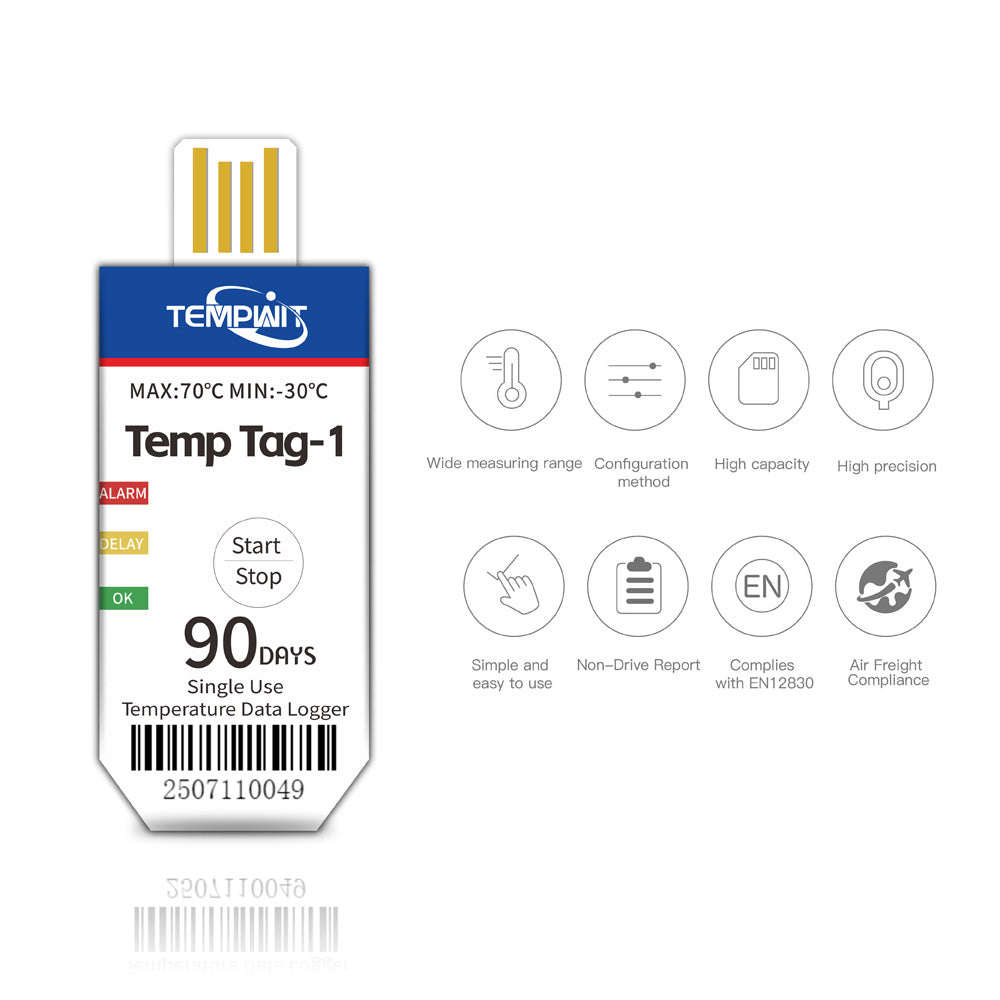

Features

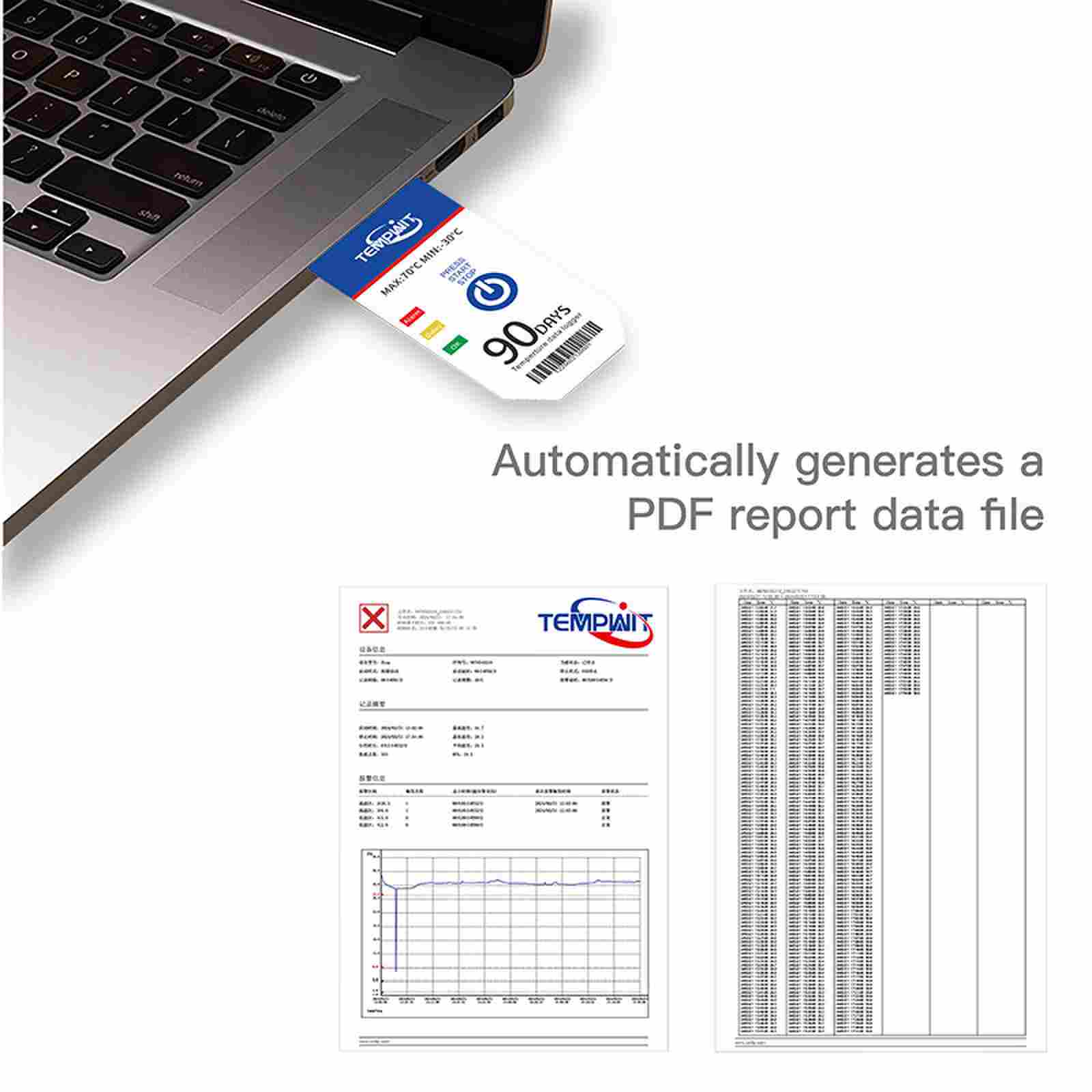

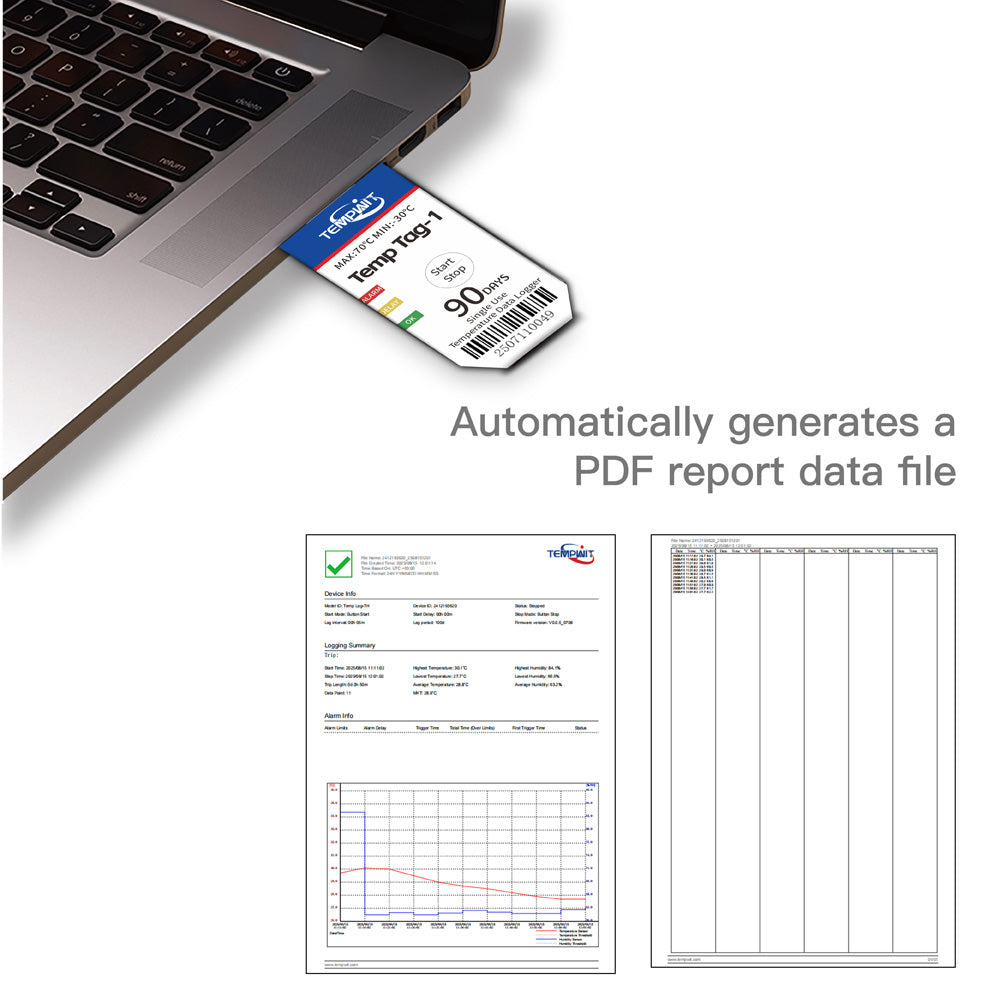

Drive-free encryption report

After the trip is completed, plug the recorder into your computer to read the report

The report cannot be tampered with, and the authoritative
report can trace the temperature data of the entire trip.

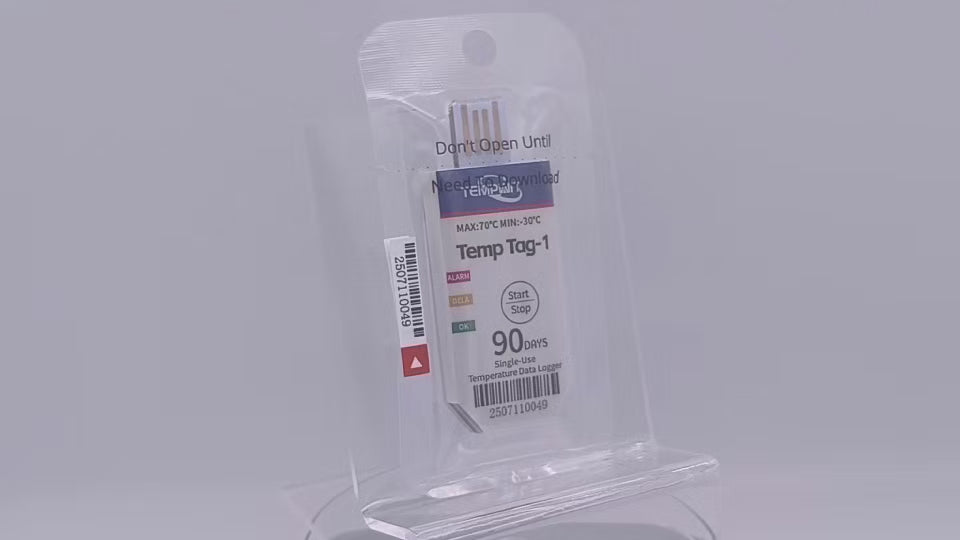

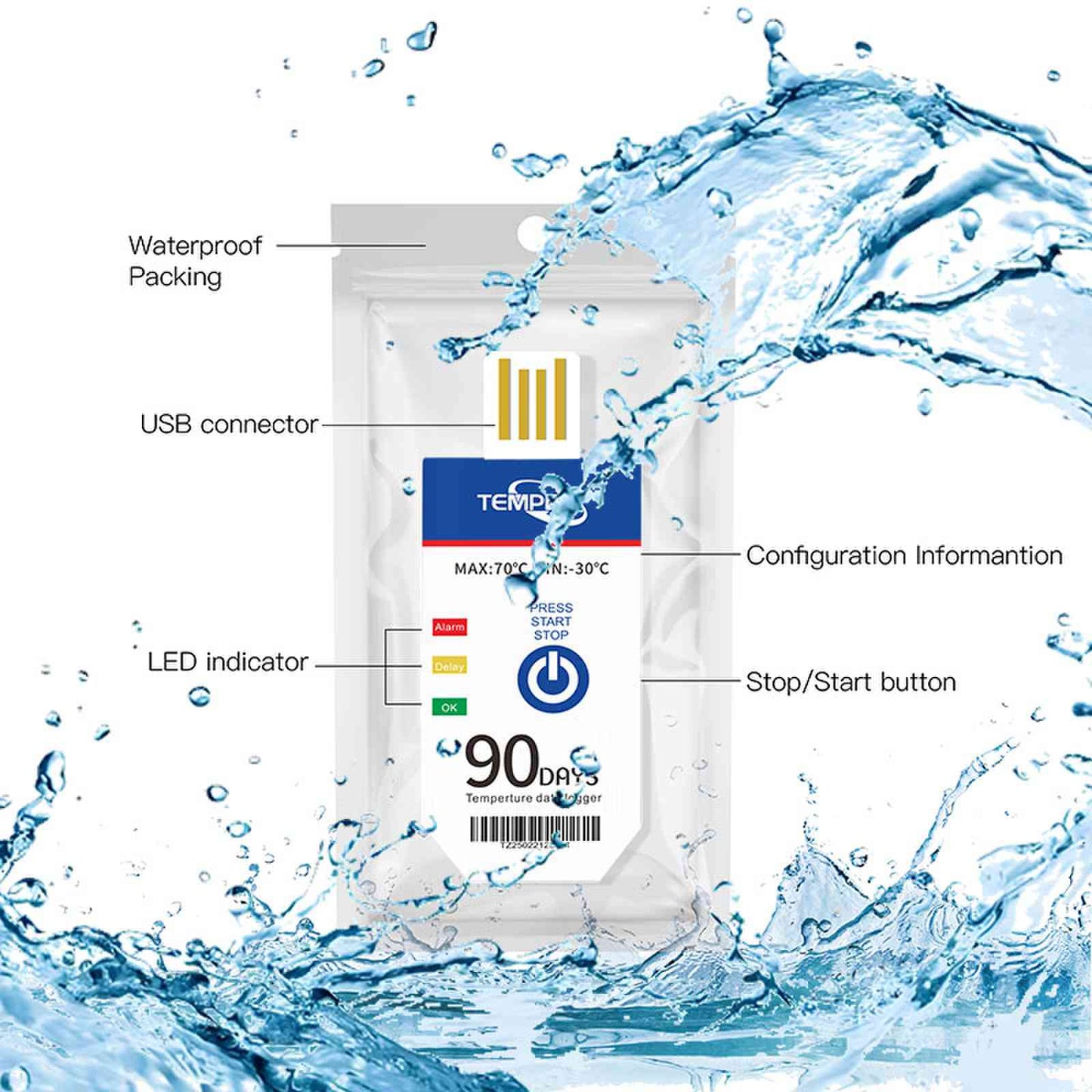

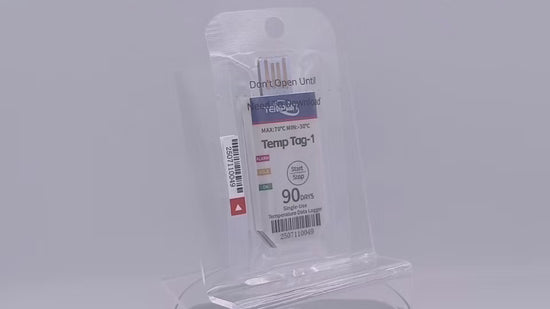

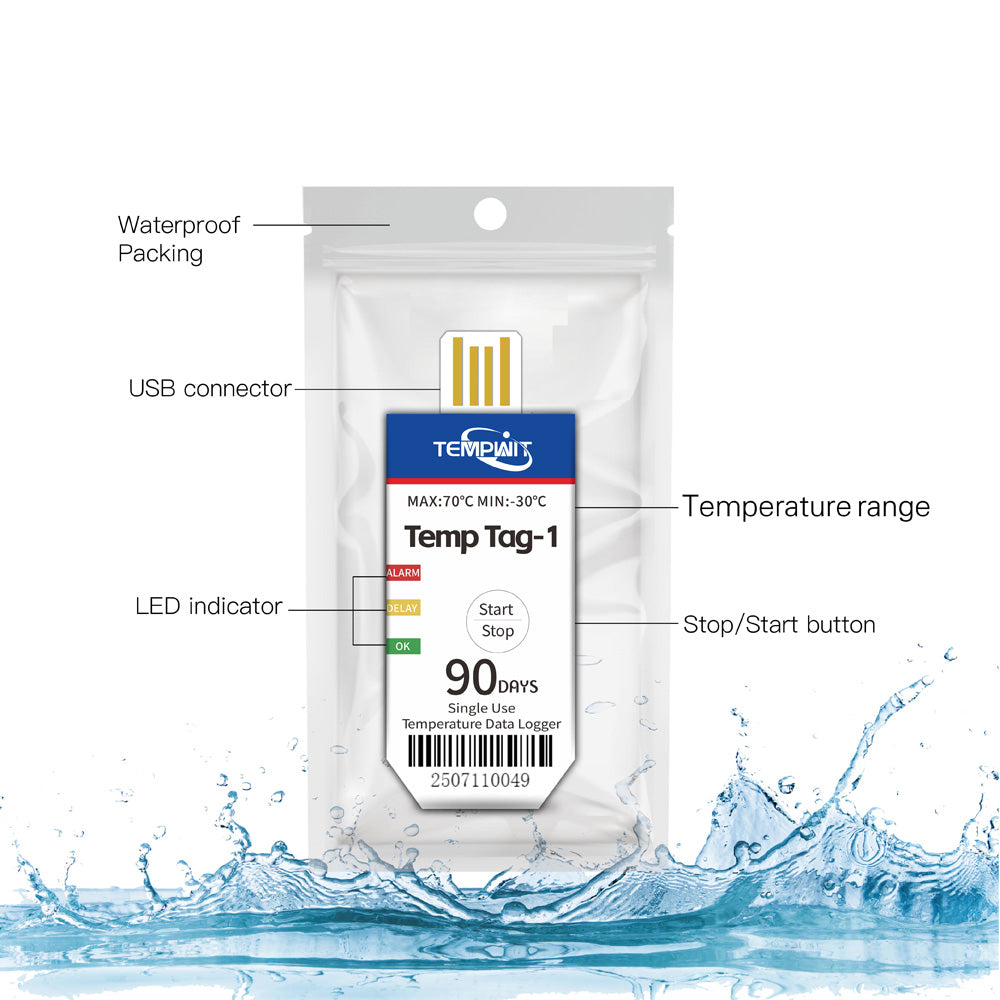

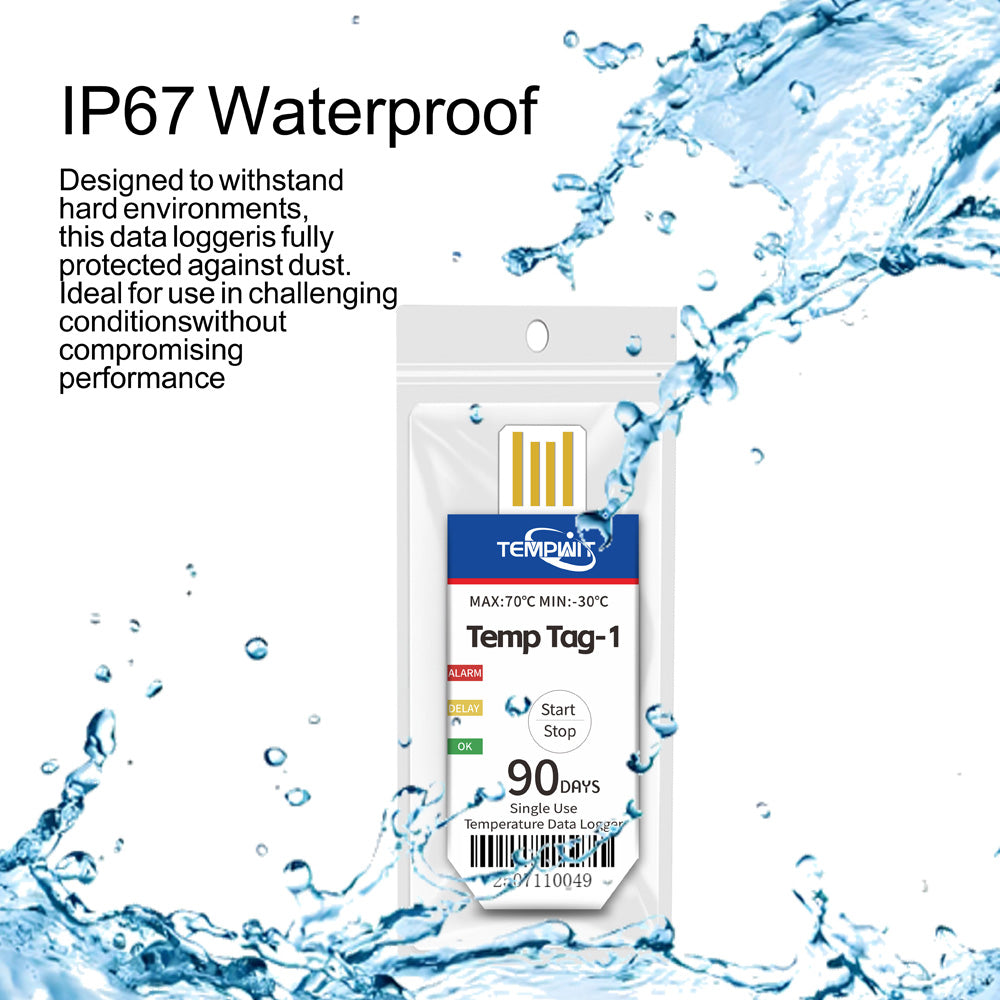

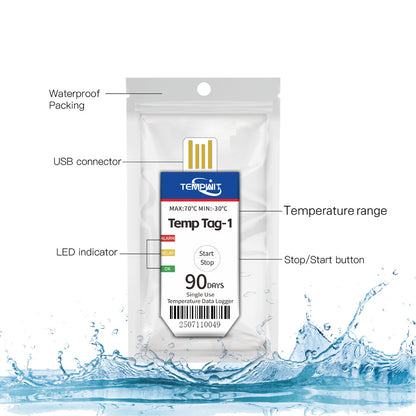

Food grade composite bag

It adopts food-grade fully sealed composite bags with IP67 protection level. It can be
transported with fresh medicines to protect the data from modification and contact
during the trip, ensuring the objectivity of data reporting.

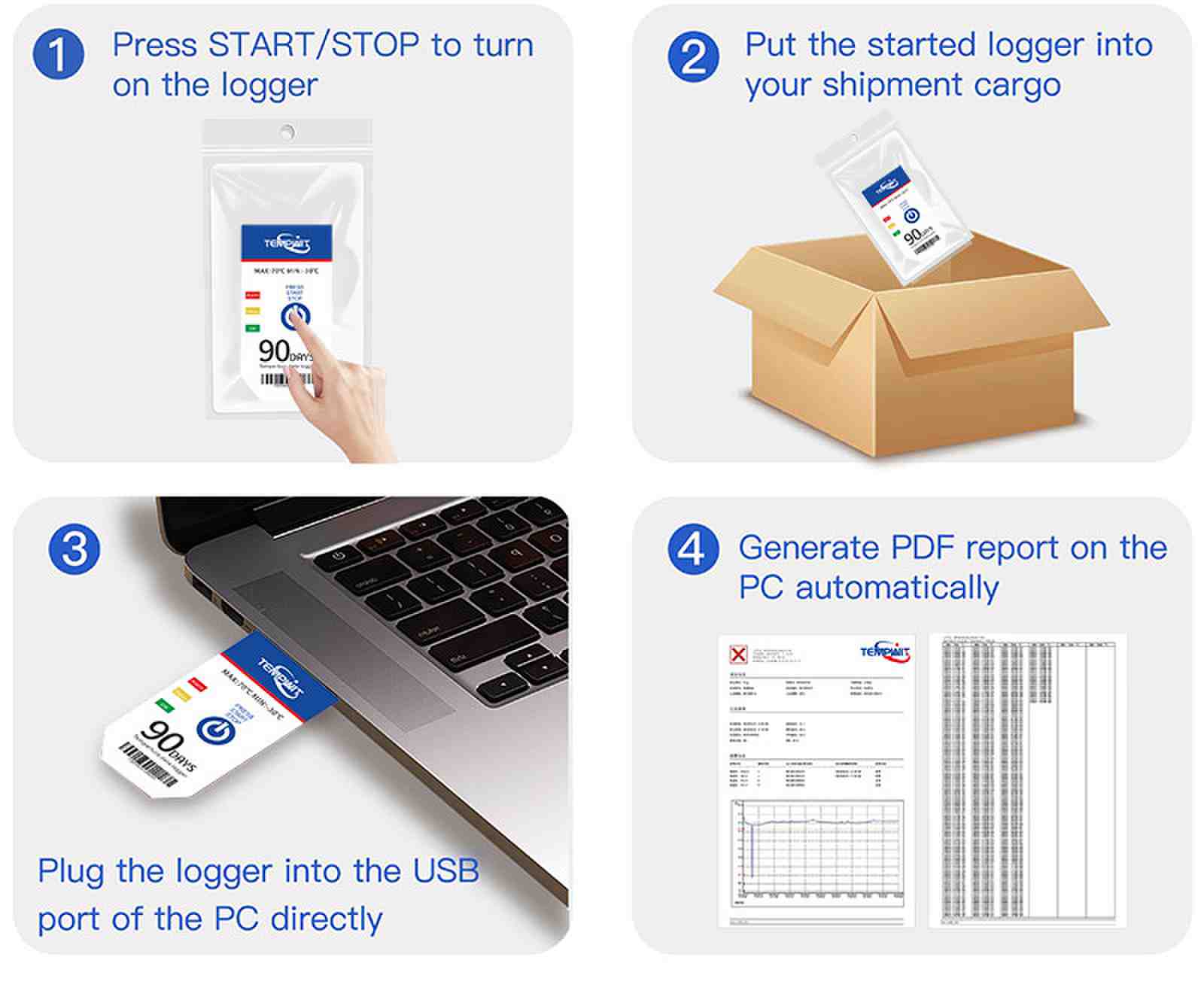

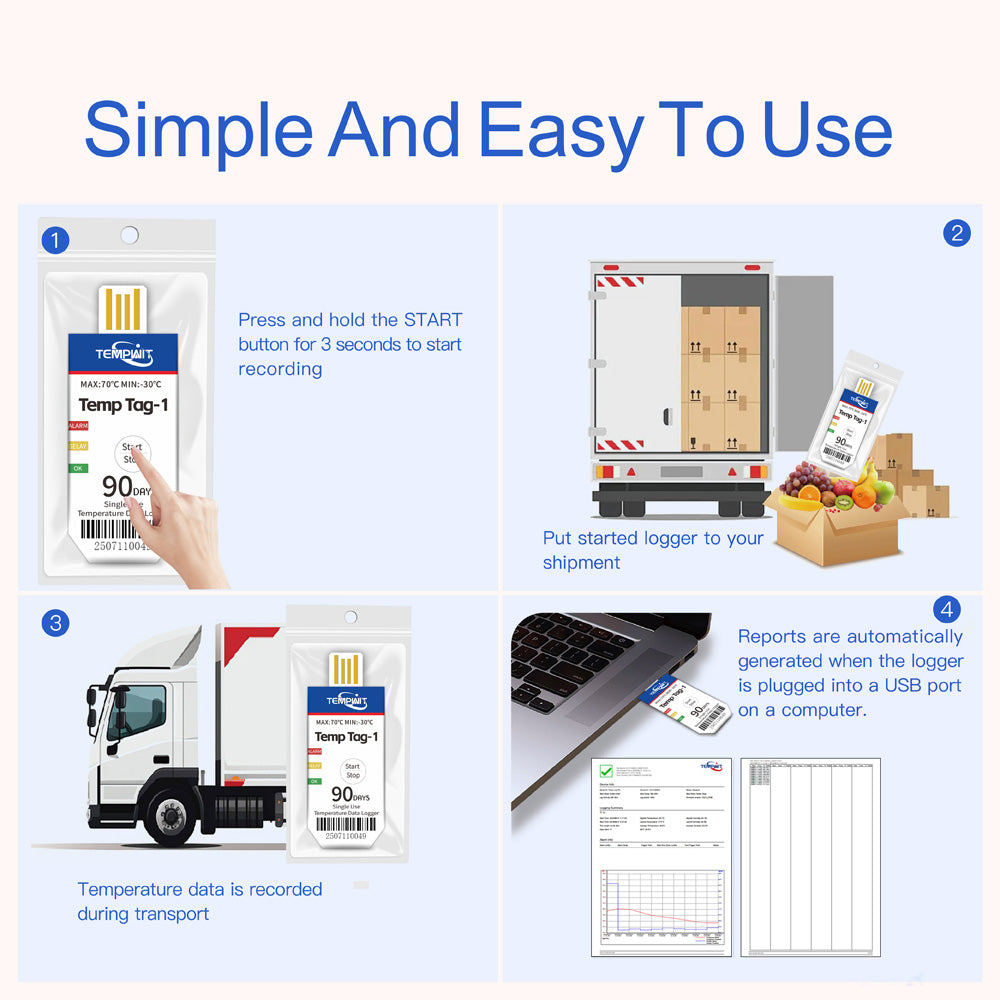

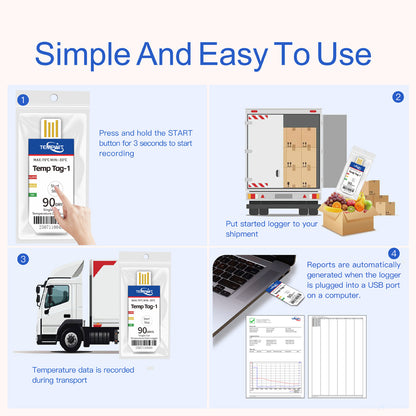

One-click start, simple and easy to use

Parameters are pre-configured before leaving the factory, and trip data can
be recorded with one click. It is simple and easy to use.

Air Freight Compliance

Complies with RTCA/DO-160G environmental conditions and test
procedures for airborne equipment, qualified for air shipment in active status.

Specifications

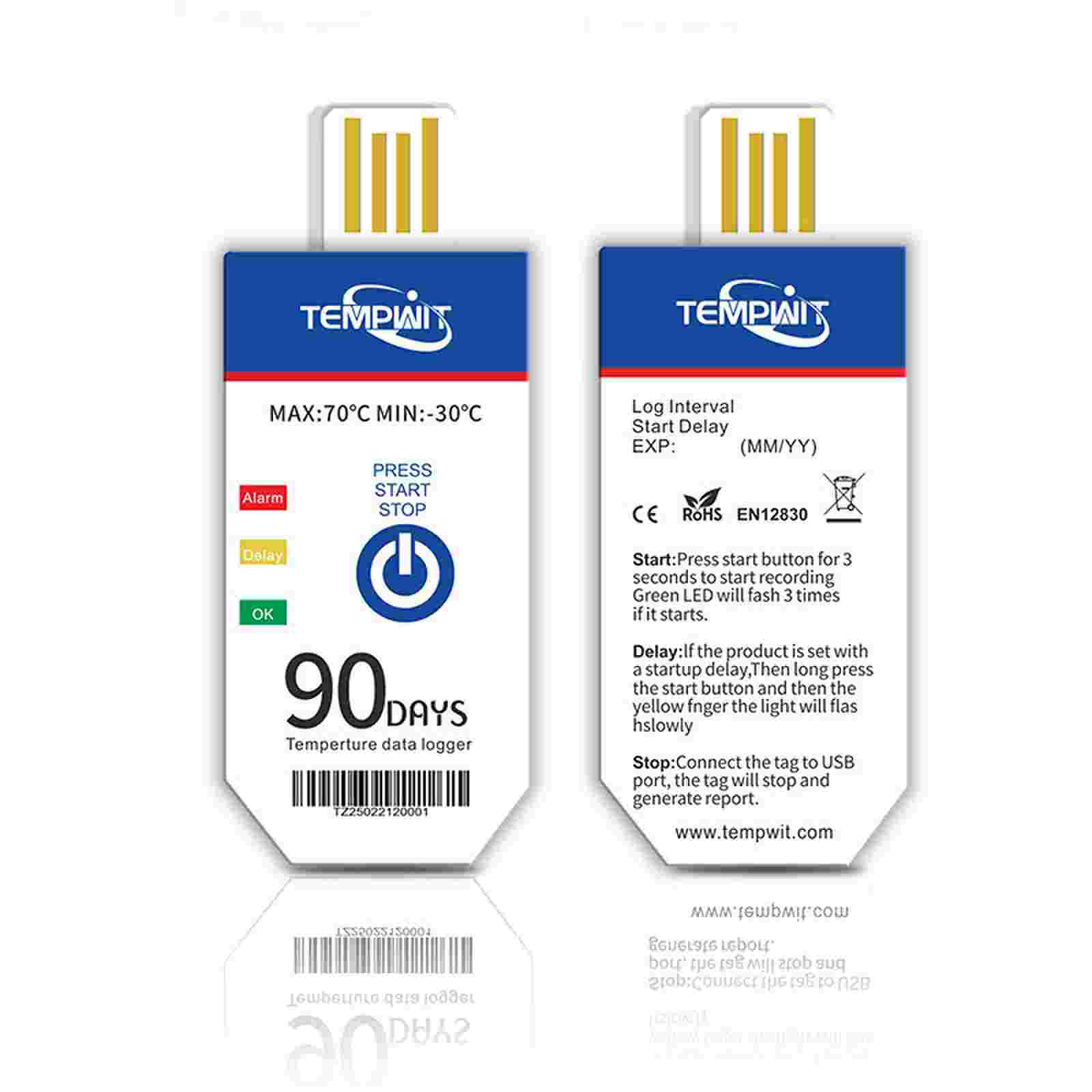

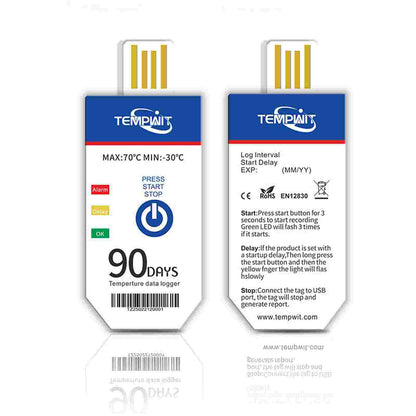

Model Temp Tag-1
LED indicator green (recording, normal), red (overtemperature alarm)
battery life up to 180 days (shelf life 2 years) @ 25 ℃,5 minutes recording interval
Measurement range -30 ℃ ~ 70 ℃ (only probe)
measurement accuracy ± 0.5°C @-10~40°C, ± 0.8°C @-30 ~-10°C & 40~70°C
resolution 0.1°C
alarm point can set high and low 2 alarm points (alarm threshold and over-temperature trigger time can be customized according to customer needs)
recording interval 1 minute -24 hours (can be factory configuration) default 5 minutes
storage capacity maximum 33000
startup delay 0 minutes -24 hours (can be configured before factory) default 10 minutes)
Start Mode Manual Start
mode movement
Report Format PDF/CSV/PDF & CSV (optional, factory configured)
Battery Type 3.0V CR2032
Connection Mode USB2.0

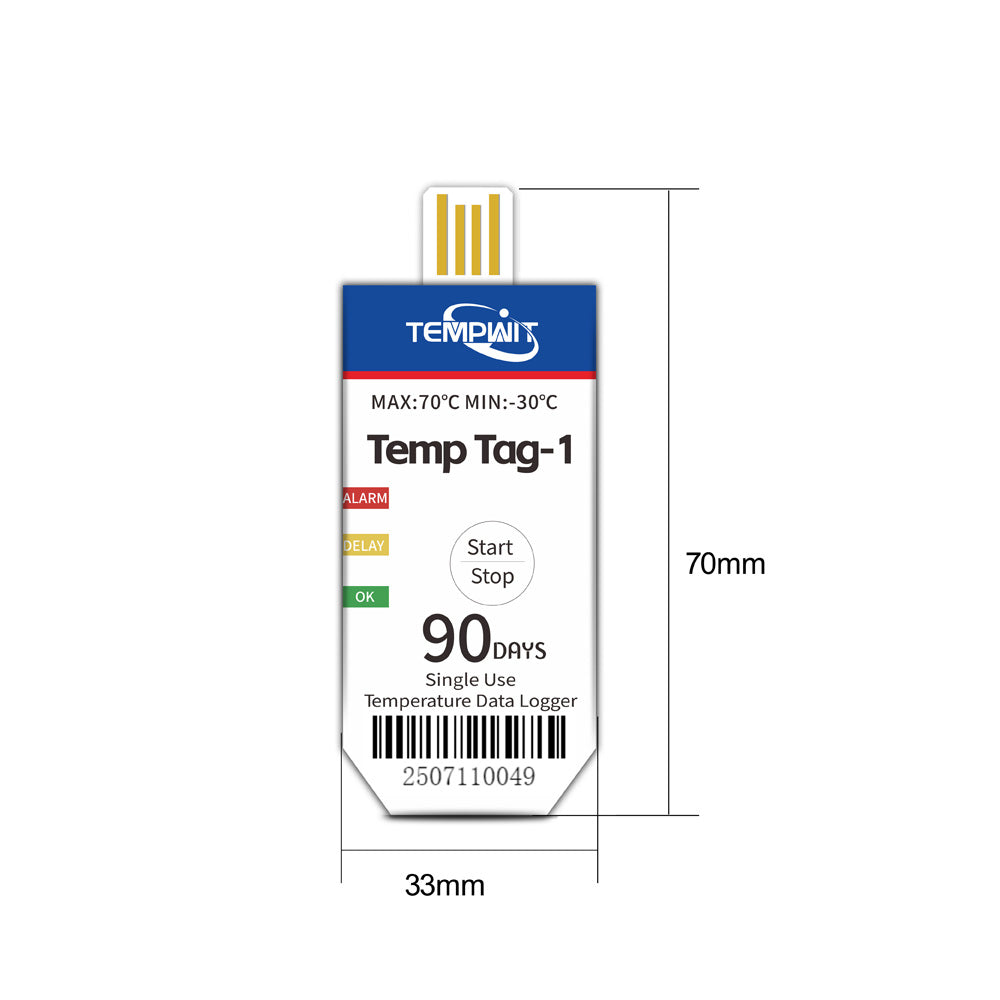

Product Size 70*33*7mm
Product Weight 20g
Product Certification CE,EN12830:2018,RTCA/DO-160G (Aviation Safety Directive),RoHS, Original Factory Sampling 3-point Calibration (AQL 0.25) GB/T 35145-2017



Applications

Tempwit single use USB temperture data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.

For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.

The USB Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Tempwit provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
