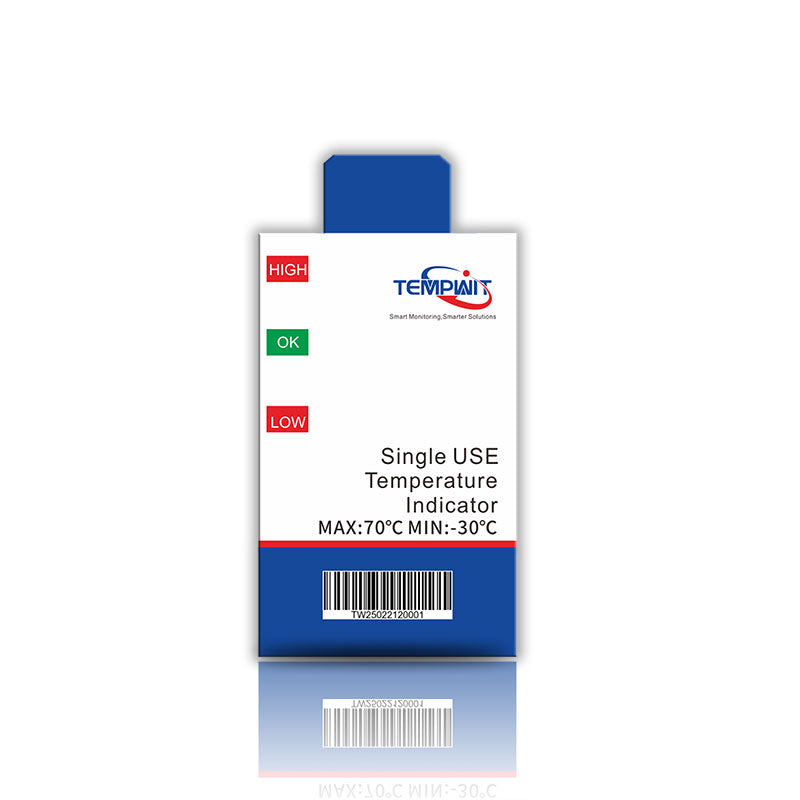

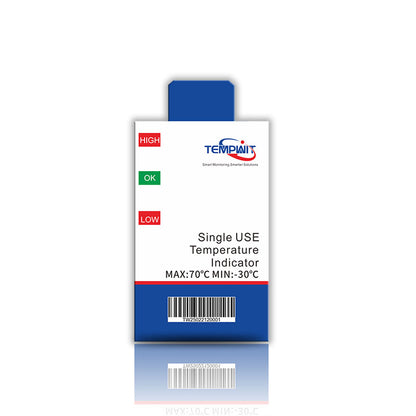

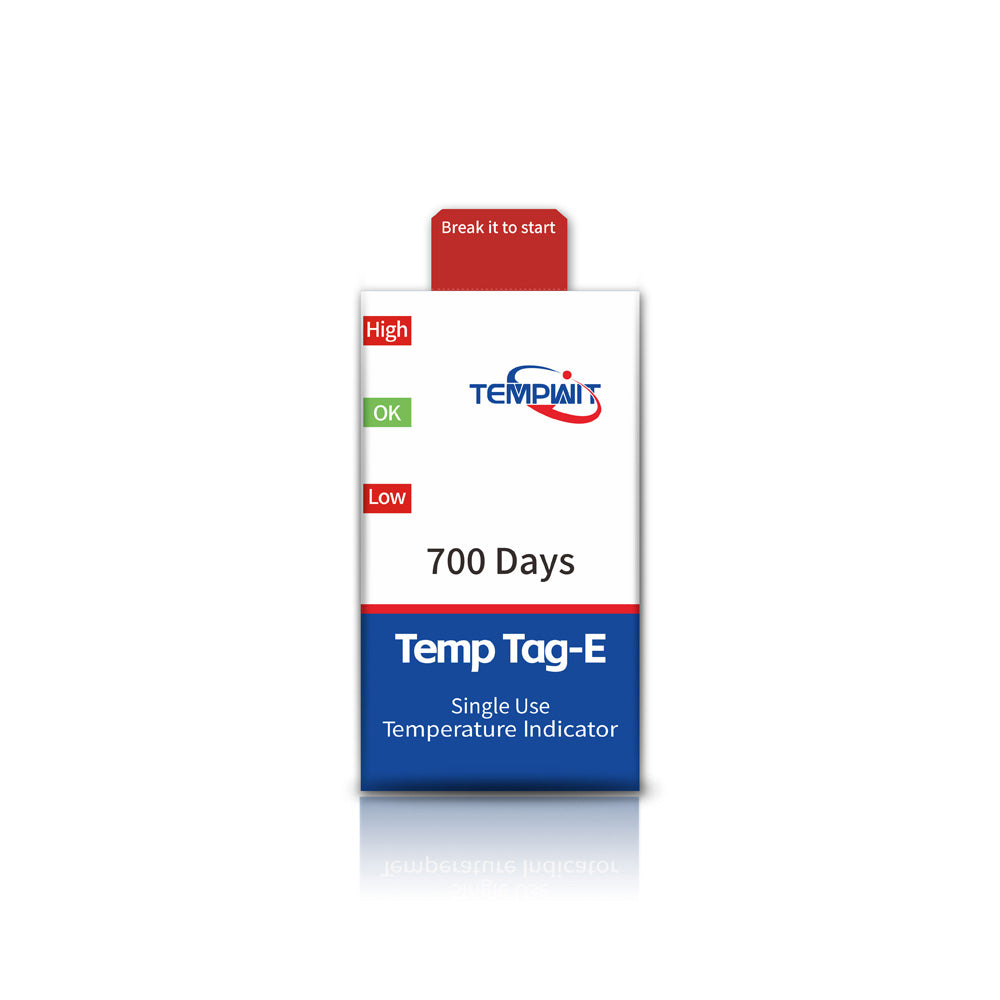

Temp Tag-E Single Use Temperature Indicator
Temp Tag-E Single Use Temperature Indicator

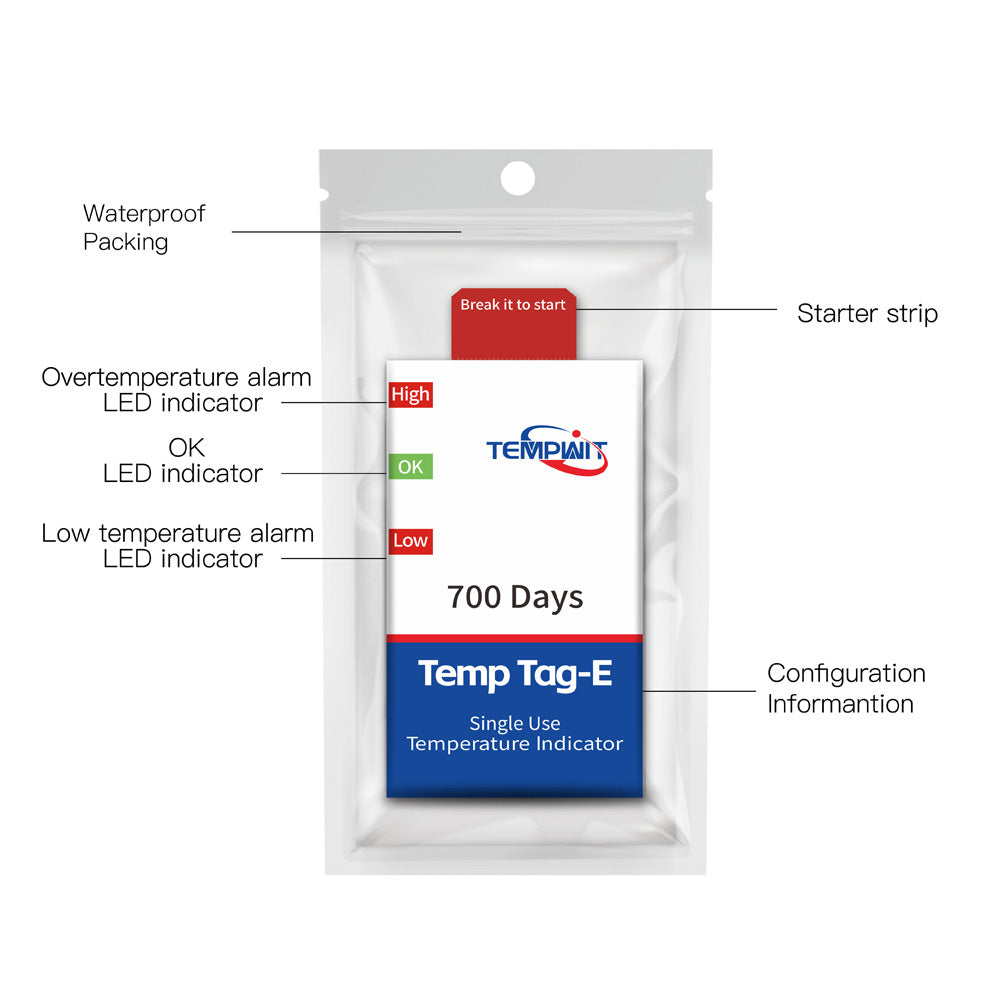

Description

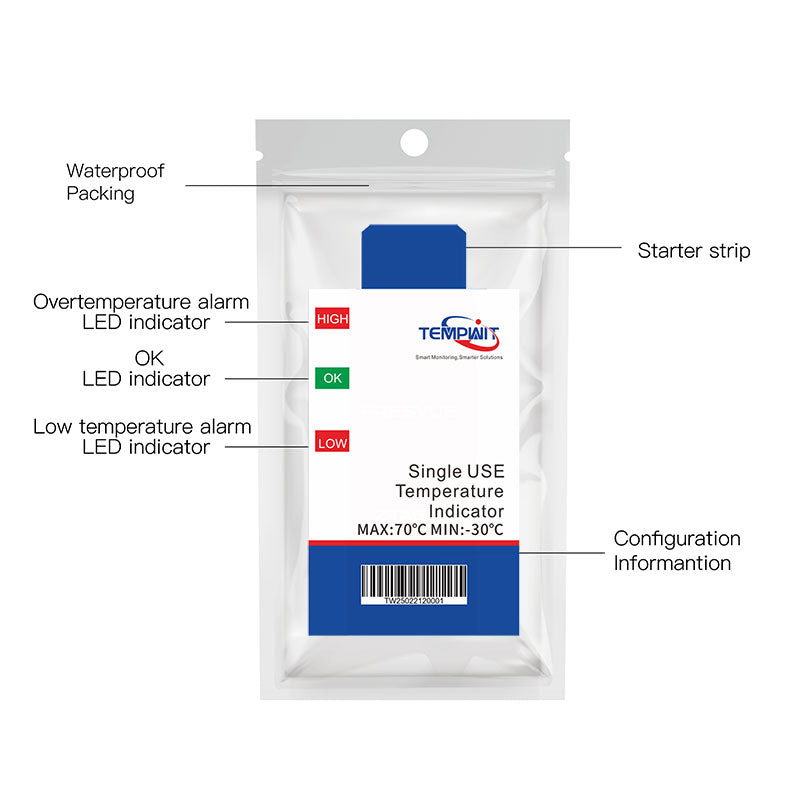

●This product is a one-time temperature indicator, using the ultimate simple design, with ultra-high cost performance, and the use of food-grade composite bags, completely waterproof
● Break off the starting bar and place it in the target monitoring environment to monitor the temperature of fresh food, medicine and other products during storage and transportation.
● It is widely used in all aspects of warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, laboratories, etc.
Features

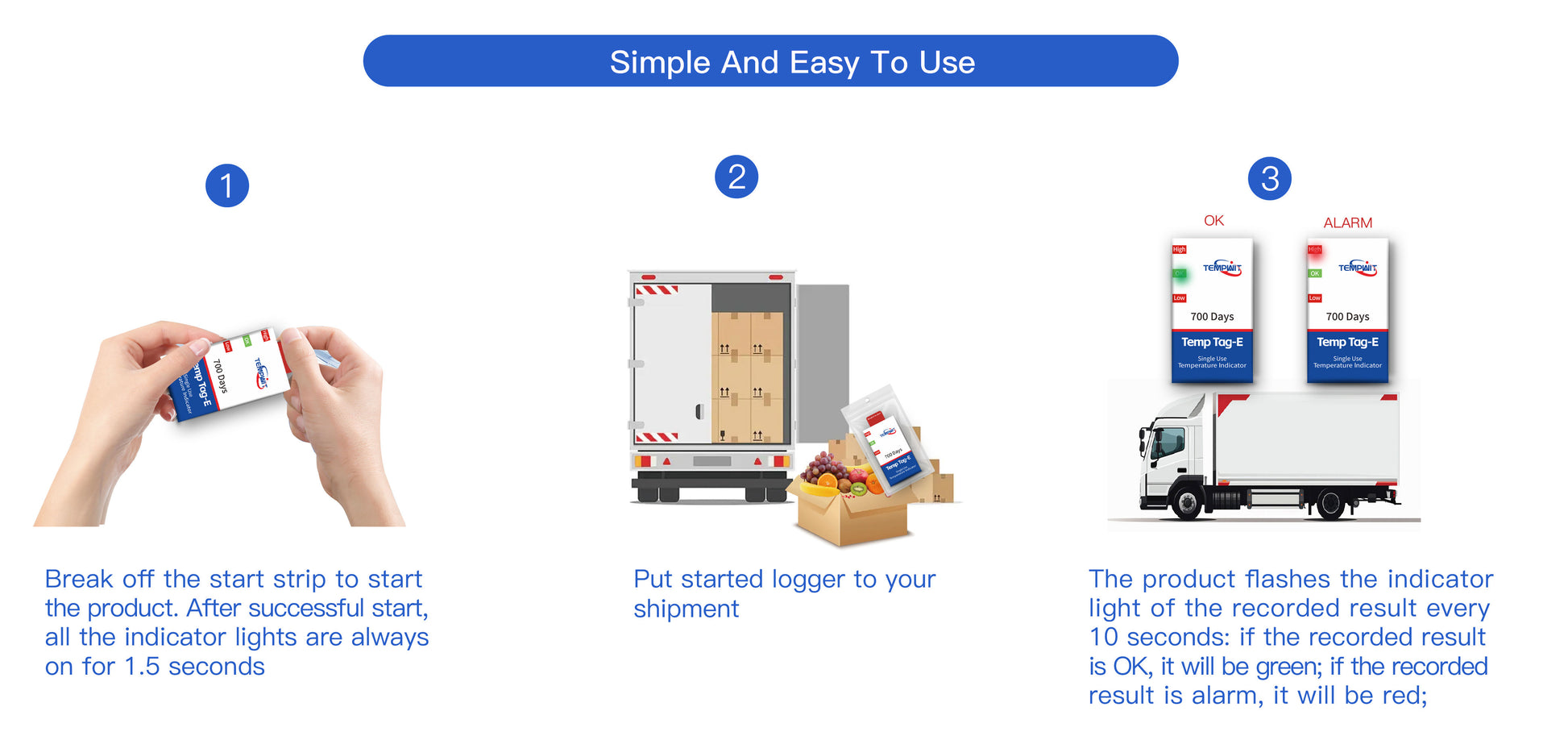

Open Start, Easy To Use
The parameters are pre-configured before the factory, and the trip data can be recorded
by breaking off and starting, which is easy to use

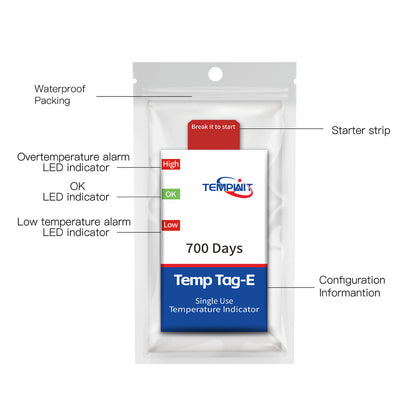

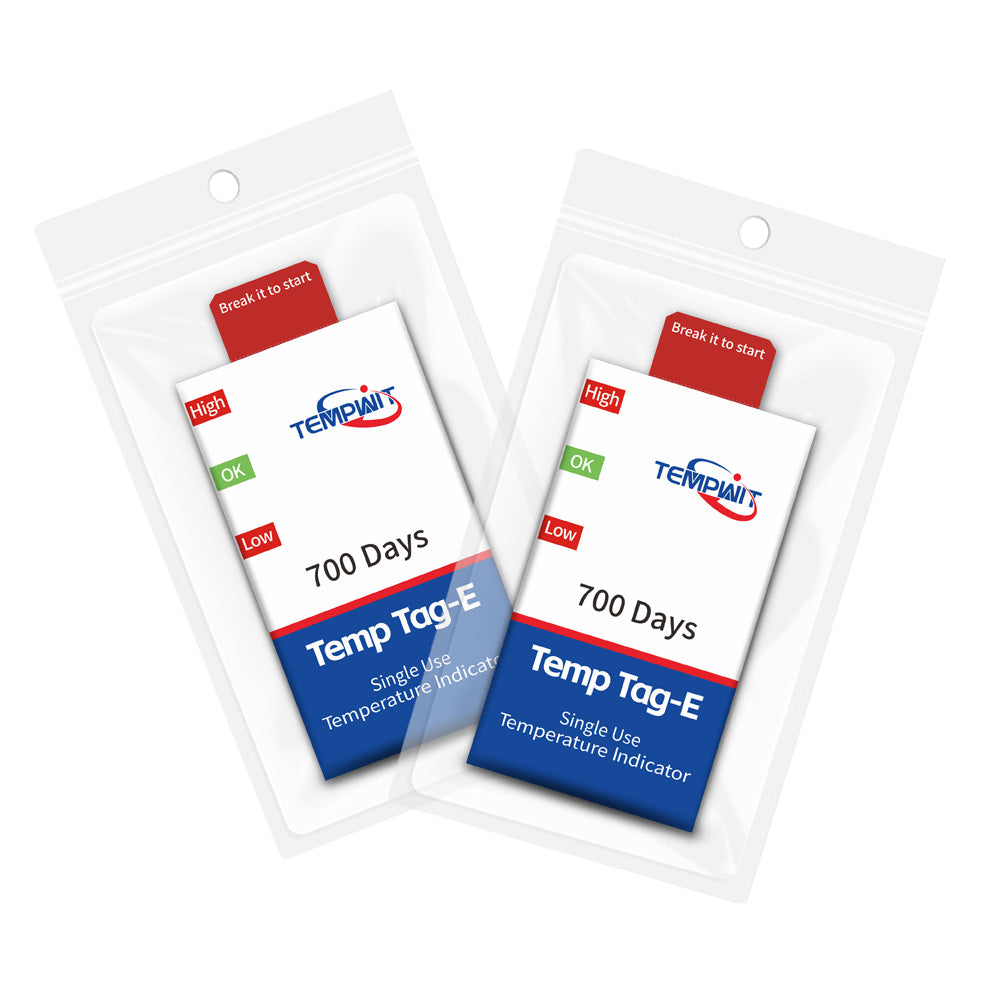

Food grade composite bag
It adopts food-grade fully sealed composite bags with IP67 protection level. It can be
transported with fresh medicines to protect the data from modification and contact
during the trip, ensuring the objectivity of data reporting.
One-click start, simple and easy to use
Parameters are pre-configured before leaving the factory, and trip data can
be recorded with one click. It is simple and easy to use.
Air Freight Compliance
Complies with RTCA/DO-160G environmental conditions and test
procedures for airborne equipment, qualified for air shipment in active status.
Specifications
Model | Temp Tag-E |

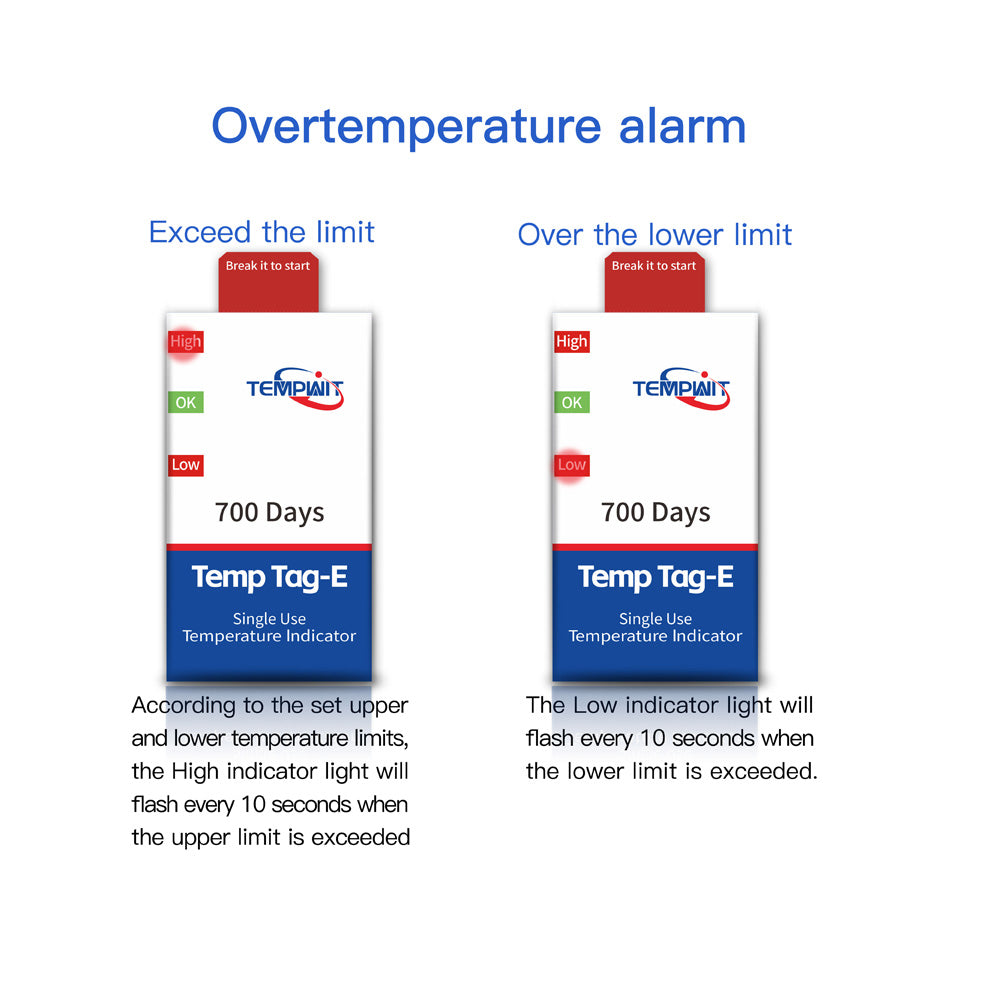

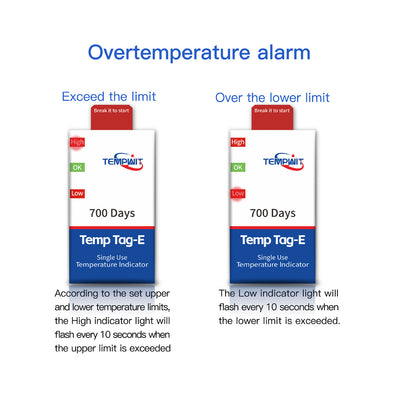

LED indicator | green (recording, normal), red (overtemperature alarm) |
battery life | up to 700 days |
Measurement range | -30 ℃ ~ 70 ℃ (only probe) |
measurement accuracy | ± 0.5°C @-10~40°C, ± 0.8°C @-30 ~-10°C & 40~70°C |

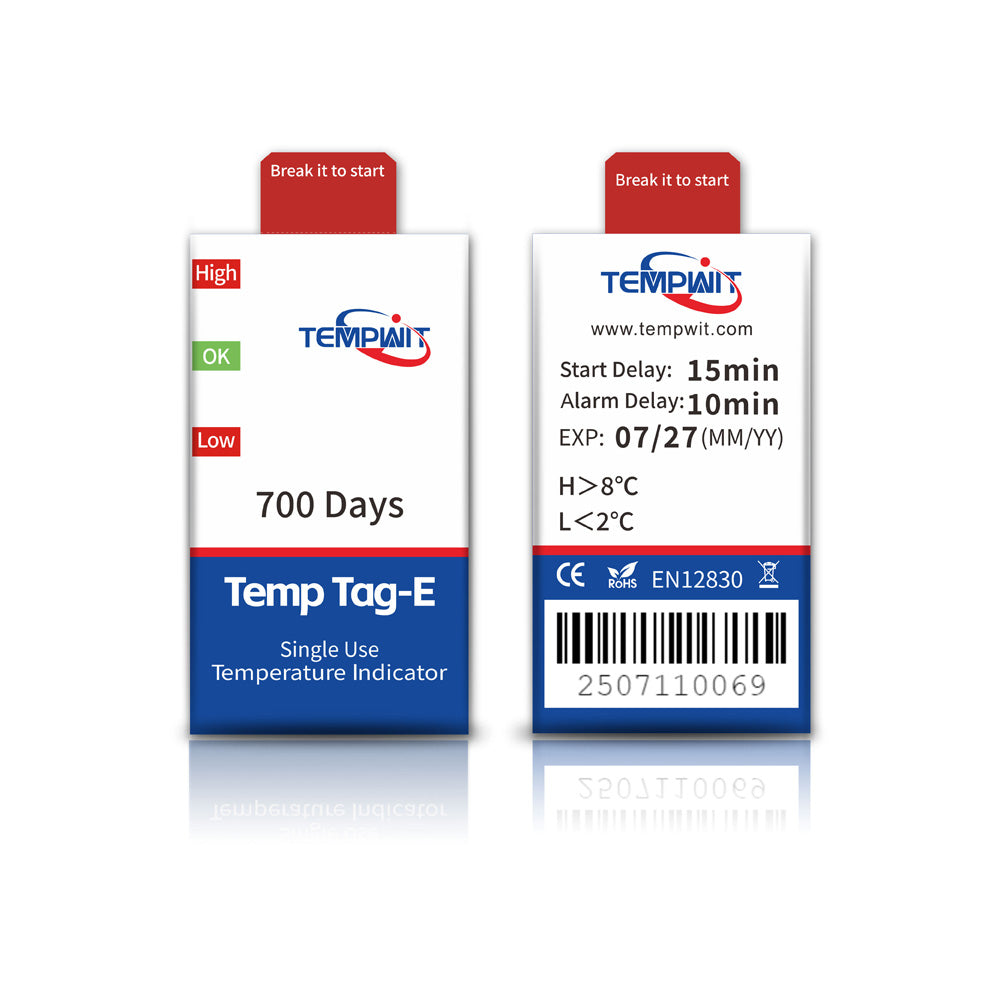

recording interval | 1 minute -24 hours (can be factory configuration) default 5 minutes |

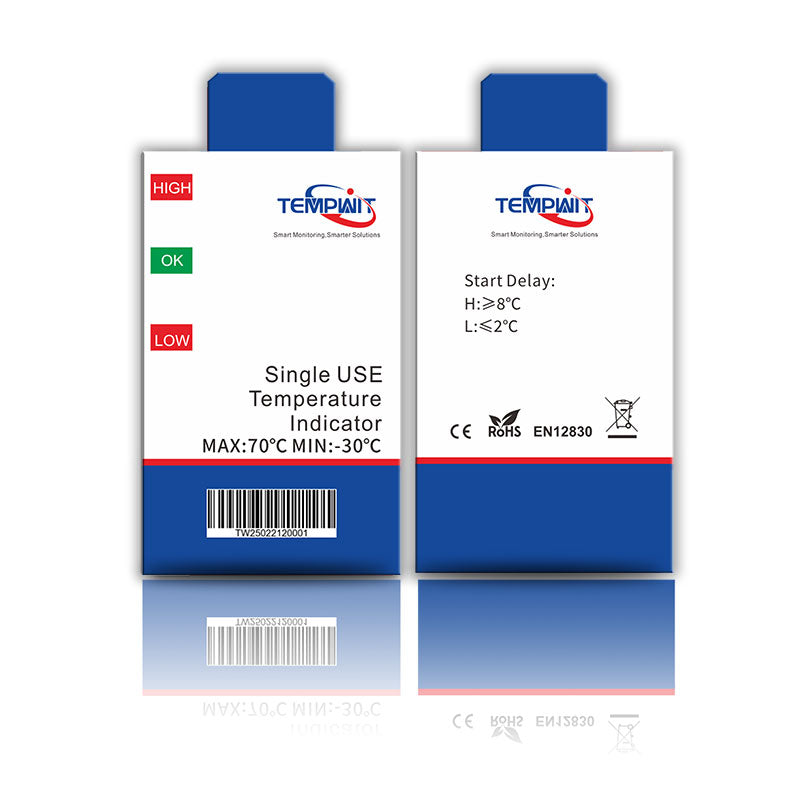

alarm point | can set two high and low alarm points (default 2-8 ℃, delay can be customized alarm threshold and delay alarm time) |
startup delay | 0 minutes -24 hours (can be configured before factory) default 10 minutes) |
Start Mode | can be started by breaking off the starting bar |
protection level | IP68 |
Battery Type | 33.0V CR2032 |
packing method | food grade compound bag |
Product Certification | CE,EN12830:2018,RTCA/DO-160G (Aviation Safety Directive),RoHS |
Applications
Tempwit single use temperature indicator is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.
For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.
For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.
The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.
The single use temperature indicator is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.
Tempwit provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
