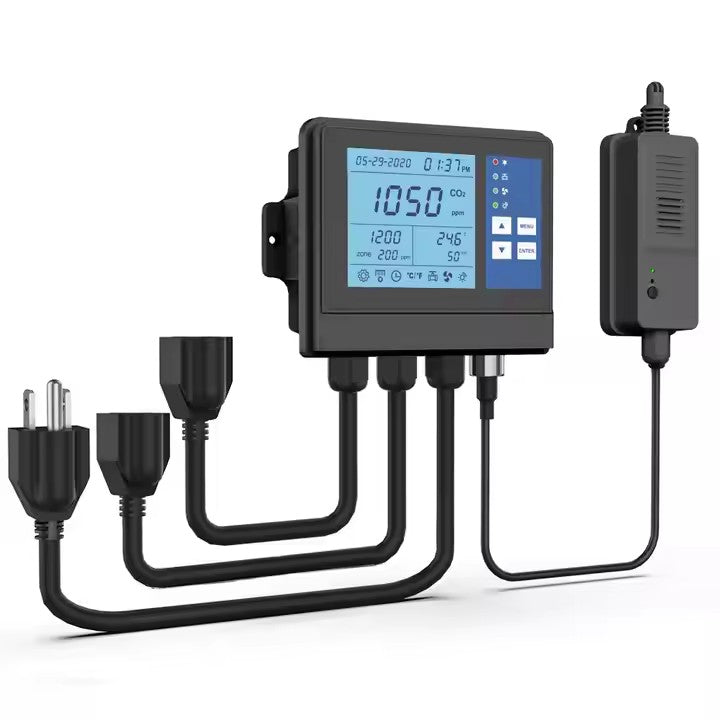

Temp C01 Temperature Controller for Green House
Temp C01 Temperature Controller for Green House
Features
* Built-in photocell sensor, with ON/OFF function

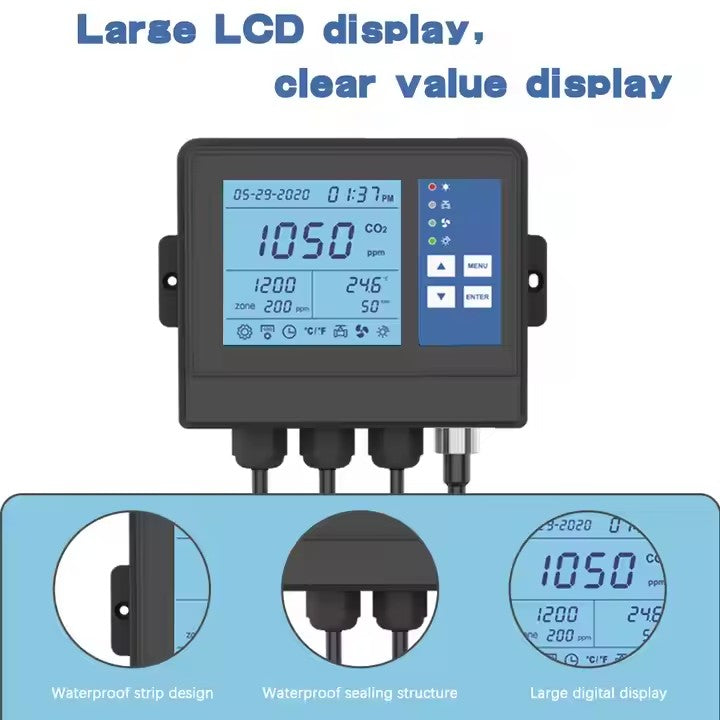

* HD large display
* Accurate Dual Chanel Low Drift NDIR CO2 Sensor
* Waterproof treatment of the controller body and the sensor probe
* Remote/external CO2 sensor for CO2 monitoring in confined spaces
* Remote/external Humidity & Temperature sensor for Temp. & RH detection in confined spaces
* Real-time displays CO2 concentration, temperature and humidity
* Easy-to-use zone value setting, and controlling on/off for output power supply
* Simple working-time setting
* CO2 controller unit with backlight
* Touch button operation
* OEM and ODM are welcomed
* Designed especially for mushroom growth
* Applied for Grow Room, Greenhouse, Grow tent, Growth chamber, Raised beds, Glass House, Plants Factory,
* Built-in photocell sensor, with ON/OFF function
* HD large display
* Accurate Dual Chanel Low Drift NDIR CO2 Sensor
* Waterproof treatment of the controller body and the sensor probe
* Remote/external CO2 sensor for CO2 monitoring in confined spaces
* Remote/external Humidity & Temperature sensor for Temp. & RH detection in confined spaces
* Real-time displays CO2 concentration, temperature and humidity
* Easy-to-use zone value setting, and controlling on/off for output power supply
* Simple working-time setting
* CO2 controller unit with backlight
* Touch button operation
* OEM and ODM are welcomed
* Designed especially for mushroom growth
* Applied for Grow Room, Greenhouse, Grow tent, Growth chamber, Raised beds, Glass House, Plants Factory,
Mushroom / Paprika / Strawberry / Tomato Farming Cold Storage
Specification
Product Name
|
CO2, Temperature & Humidity Controller
|
Model
|
1600Pro
|
Measurement Range
|
(0-5000ppm);
(0-10000ppm) |
Accuracy
|
(0-3000ppm): ±50ppm or ±5% of reading; (>3000ppm): ±7% of reading
|
Warm-up Time
|
30 seconds (cold start) @25℃
|
Response Time
|
63% of step change < 2 min, or 90% step change < 4.6 min
|
Operating Temperature
|
32℉ - 122℉ (0℃ - 50℃)
|
Storage Temperature
|
14℉ - 140℉ (-10℃ - 60℃)
|
Operating & storage RH
|
5-95% (non-condensing)
|

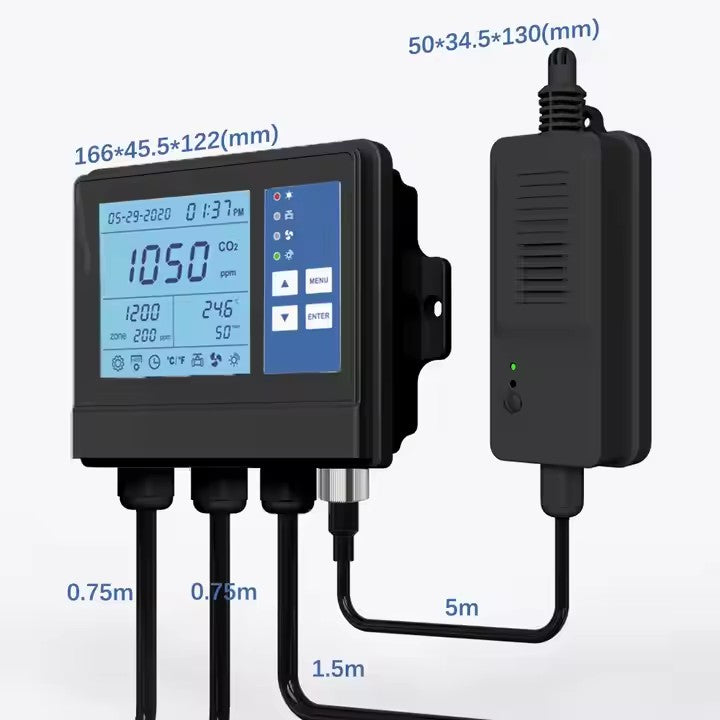

Dimensions
|
Control unit: 166x45.5x122 mm
CO2 Sensor unit: 50x34.5x130 mm
Temperature & Humidity Sensor unit: 66*14mm
|
Weight
|
1.7 kg
|
Power Input
|
AC100-240 VAC
|
Output Socket Load
|
5A/AC MAX for Humidifier; 15A/AC MAX for Fan
|
