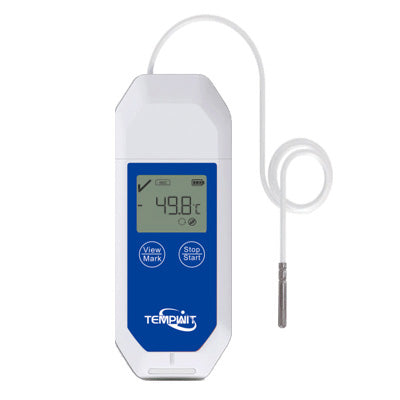

Temp Log-T50 Multi Use Temperature Data Logger with External Probe
Temp Log-T50 Multi Use Temperature Data Logger with External Probe
Cloud Configuration Tool
Description
●This product is a repetitive, configurable, and replaceable battery temperature data logger.
● The logger with LCD display, you can view real-time temperature and humidity data, mainly used for monitoring and recording vegetables, fruits, meat and other fresh products in the storage and transportation of temperature and humidity data
●It is widely used in all aspects of warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, etc.
Features
Drive-free encryption report
After the trip is completed, plug the recorder into your computer to read the report
The report cannot be tampered with, and the authoritative
report can trace the temperature data of the entire trip.
Food grade composite bag
It adopts food-grade fully sealed composite bags with IP67 protection level. It can be
transported with fresh medicines to protect the data from modification and contact
during the trip, ensuring the objectivity of data reporting.
One-click start, simple and easy to use
Parameters are pre-configured before leaving the factory, and trip data can
be recorded with one click. It is simple and easy to use.
Air Freight Compliance
Complies with RTCA/DO-160G environmental conditions and test
procedures for airborne equipment, qualified for air shipment in active status.

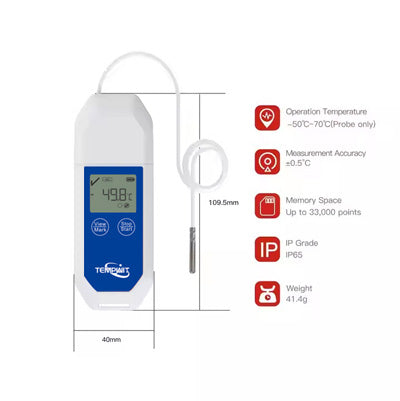

Specifications
Model Number
|
Temp Log-50T
|
Theory
|
Temperature data logger
|
Warranty
|
18 months
|
Customized support
|
OEM, ODM, OBM
|
Battery Type
|
3.0V CR2450
|
Temperature range
|
-50℃-70℃
|
Material
|
Other
|
Type
|
Other
|
LED Indicator
|
Green(Recording,OK),Red(Alarm)
|
Battery life
|
Up to 2 years( 1 year storage / 1 year useful life) @25℃,5 minutes logging interval
|
Operation Temperature
|
-50℃~70℃(Probe only)
|
Measurement Accuracy
|
±0.5°C
|
Resolution
|
0.1°C
|
Alarm Limit
|
Up to 6 individually programmable alarm limits
|
Logging Interval
|
1 minute -24 hours optional,Default 5 minutes
|
Memory Space
|
Up to 33,000 points
|
Start Delay
|
0 minute -24 hours optional,Default 10 minutes
|
Start Mode
|
Manual/Auto start
|
Applications
Tempwit multi use USB temperture data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.
For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.
For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.
The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.
The USB Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.
Tempwit provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
