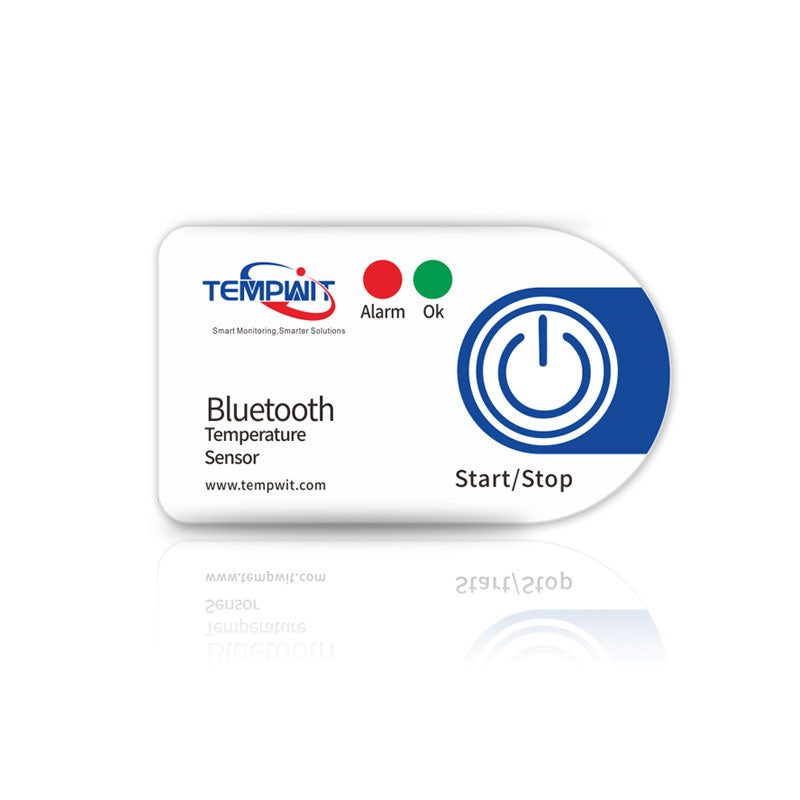

Temp Tag-BT03 Single Use Bluetooth Temperature Data Logger

Temp Tag-BT03 Single Use Bluetooth Temperature Data Logger

Description

Temp Tag-BT03 Bluetooth temperature data logger is a compact and portable temperature data logger based on Bluetooth wireless communication technology. The Bluetooth temperature recorder is convenient for users to remotely configure parameters, view and export temperature data via our mobile APP, without opening packages, fridges, containers, etc. All data viewed by one user will be automatically synchronized to other users from the cloud, allowing multiple users to view online simultaneously. The app also features powerful data analysis, filtration, graphing, alarming and other functionalities to help users to control temperature monitoring and take precautions.

Features

High accuracy and stability

Bluetooth 5.0

Built-in highly sensitive temperature sensor

Real-time broadcast temperatureIt can store 53248 pieces of temperature data(when the storagespace is full, the first 512 pieces of data will be overwritten)

Can be set the scope of temperature alarmB

y pairing Bluetooth printer to print the data report

Support version update by OTA

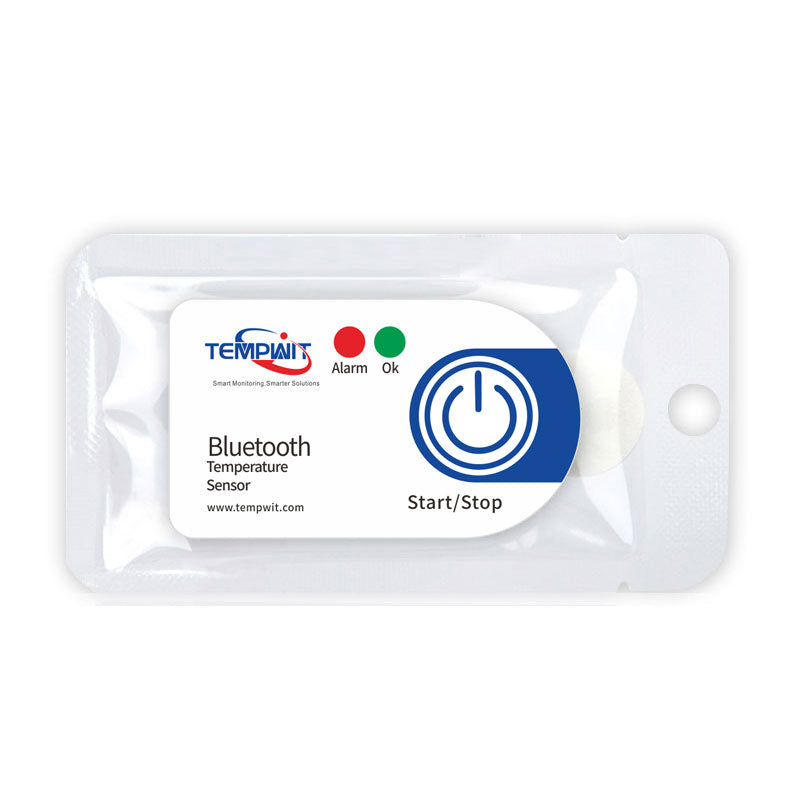

Food grade composite bag

Specifications

Item
Specification
Model
Temp Tag-BT03
Protocol standard
Bluetooth 5.0
Send interval
1s, adjustable
Built in battery
620mAh /3V(can’t replaceable)
Output power
0dBm, adjustable
Transmission  distance

0dbm:100 meters, 4dbm:120 meters
Operating temperature range
-20℃~ +60℃
Temperature detection accuracy
±0.5℃(-20~40℃),±1℃(other)
Temperature resolution
0.1℃
Temperature refresh frequency
5s
Record Interval
10min(10s~180h)
Battery life
1 year(Normal temperature 25℃)
Protection grade
IP67(Contains waterproof bag)
Net weight
14g
Outline size
62mm*36mm*5mm


Applications



Tempwit single use temperture data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.

For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.

The bluetooth Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Tempwit provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
