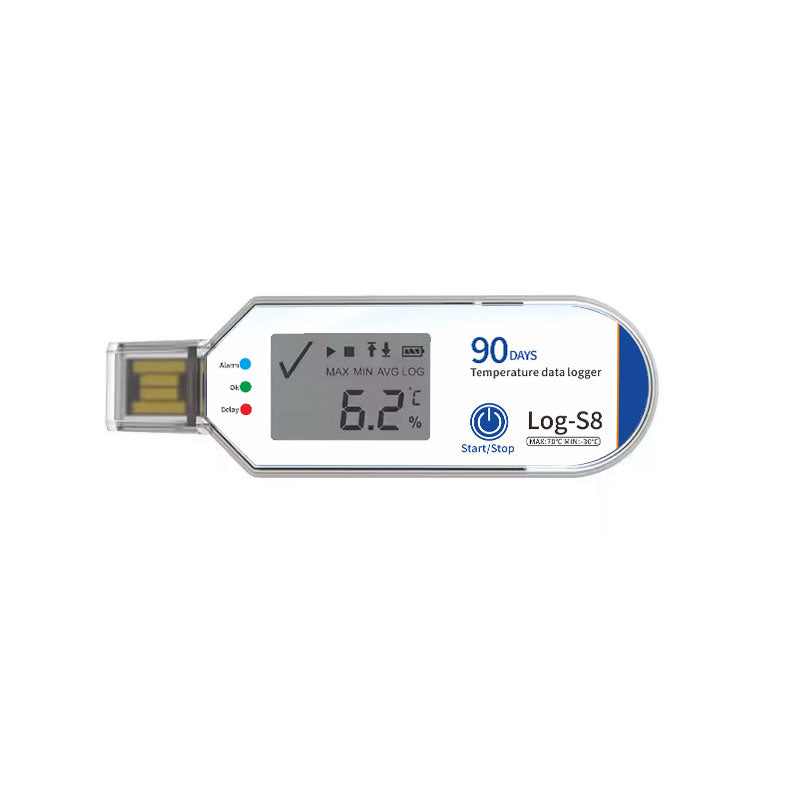

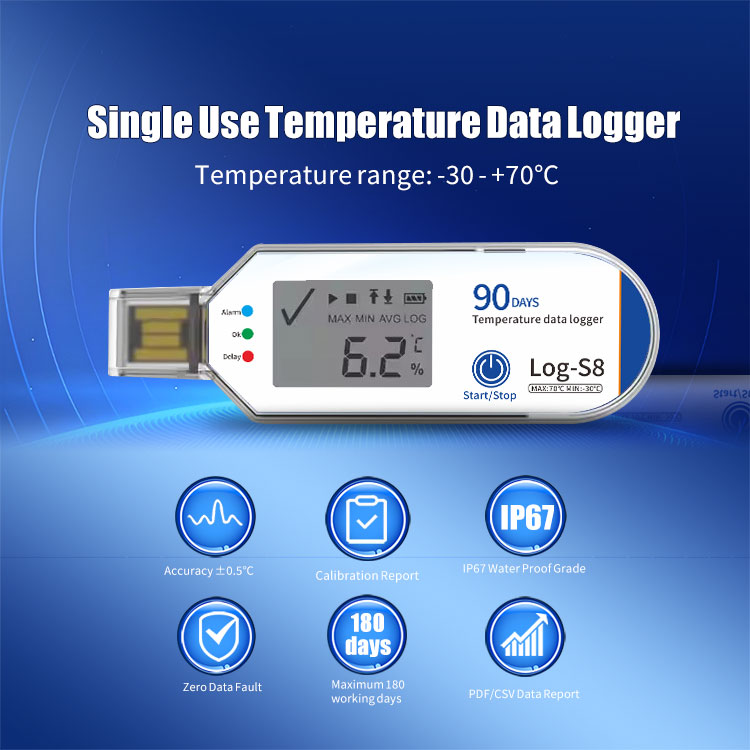

Tempwit Log-S8 Configurable Single Use Temperature Data Logger

Description

Tempwit Log-S8 is a disposable PDF temperature data logger. Its built-in PDF file generation function allows the logger to be plugged into a PC to generate unmodified PDF data reports without additional software.

This disposable PDF temperature data logger has the advantages of low cost, easy operation and small space occupation. The product is made of food grade packaging materials. It is compact, light, waterproof and widely used. It is an ideal choice for monitoring and recording the temperature changes of sensitive goods during transportation.

Tempwit Log-S8 disposable PDF temperature data logger is mainly used to record the temperature of fruits and vegetables, food, drugs, chemical products and other products. It is widely used in cold chain storage and logistics of refrigerated containers, refrigerated trucks, refrigerated bags, refrigerated cabinets, medicines, etc.

Features

Smart Size

The USB temperature sensor has a compact profile and lightweight design,.

Easy to place and operate

The small and light disposable USB data logger can be placed anywhere. It requires no software or drivers to set up or download data.

Automatic PDF/CSV data report

The built-in USB connector can be plugged into any PC USB port, and PDF/CSV/PDF+CSV format reports with graphs and tables are automatically generated, with no cable or reader required.

High accuracy and large memory

It can work for up to 360 days. Its memory capacity reaches 33792 readings. Its advanced monitoring technology provides higher accuracy when detecting temperature changes.

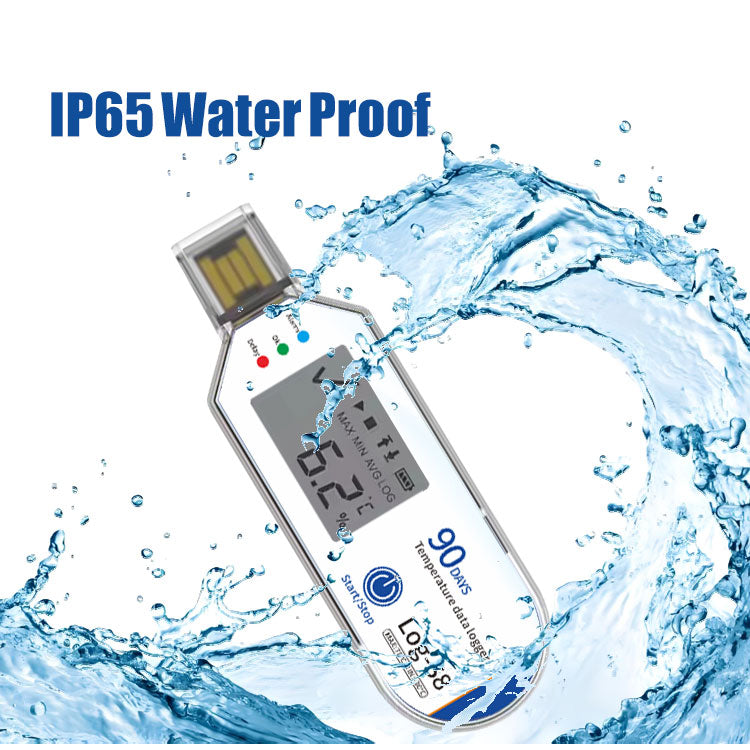

Waterproof packages comply with IP67

A protective plastic pouch helps keep logger dry and eliminates concerns when transporting products with cold packs, ice, or in damp environments.

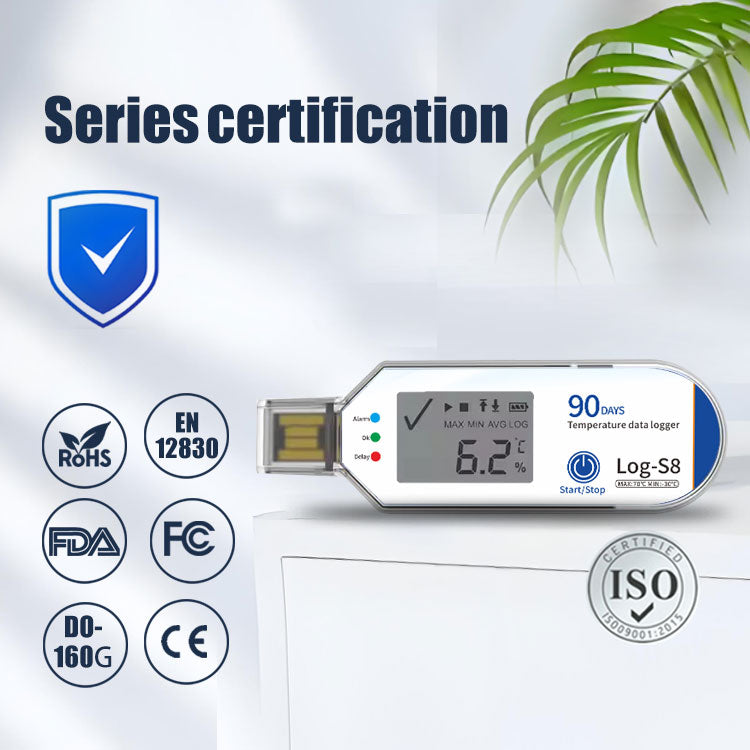

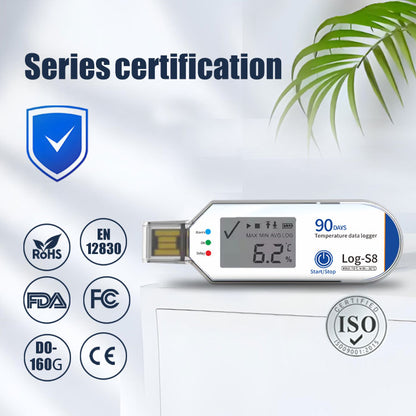

Pass professional certification

The USB temperature sensor has passed CE certification and meets the basic requirements stipulated in European laws on health, safety, environmental protection, and consumer protection.

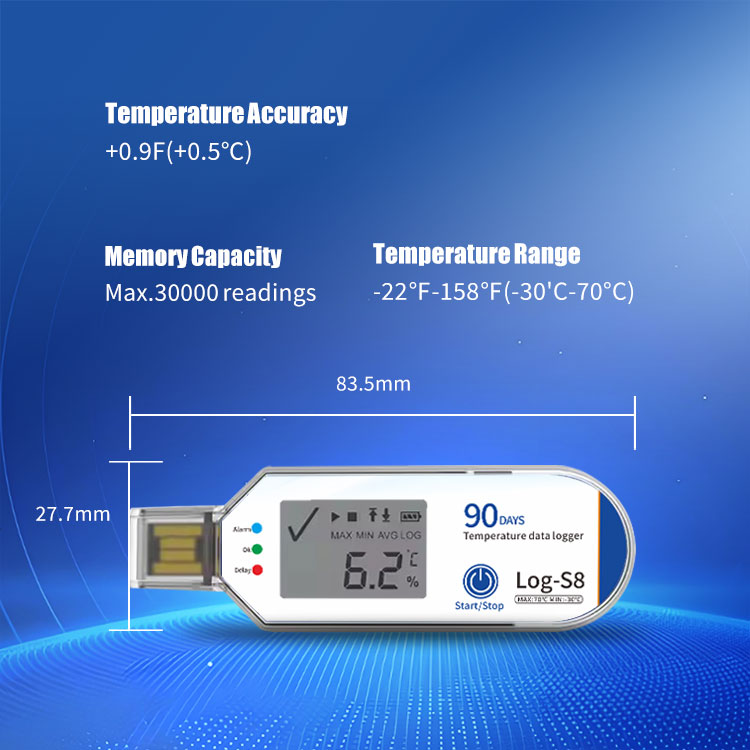

Specifications

Model	Log-S8
Type	Single Use
Temperature Range	-30°C~+70°C
Temperatrue Accuracy	+0.5°C(-20°C~+40°C);±1.0°℃(other range)
Data Storage Capacity	33792
Working Days	30/60/90/120/180/360 days (standard, others on request)
Recording Interval	5/10/15 minutes(standard, others on request)
Alarm Range	>8°C or <2°C(standard, others on request)
Start Delay	30 mins(standard, others on request)
Alarm Type	LED
Report Generation	PDF/CSV
Waterproof Level	IP67 (with Seal-Bag)
Shelf Life / Battery	2 years
Dimension	67x 28x 5.5mm
Weight(s)	12g
Certificate	CE,EN12830,RoSH

Applications

Tempwit Log-S8 single use USB temperature data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.

For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.

The USB Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Tempwit e provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
